RDKit::FilterMatchOps::Or Class Reference

#include <FilterMatchers.h>

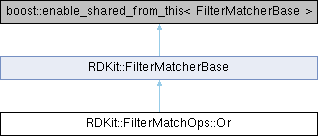

Inheritance diagram for RDKit::FilterMatchOps::Or:

Public Member Functions
	Or ()
	Or (const FilterMatcherBase &arg1, const FilterMatcherBase &arg2)
	Or (boost::shared_ptr< FilterMatcherBase > arg1, boost::shared_ptr< FilterMatcherBase > arg2)
	Or (const Or &rhs)
std::string	getName () const override
bool	isValid () const override
bool	hasMatch (const ROMol &mol) const override
	hasMatches
bool	getMatches (const ROMol &mol, std::vector< FilterMatch > &matchVect) const override
	getMatches
boost::shared_ptr< FilterMatcherBase >	copy () const override
Public Member Functions inherited from RDKit::FilterMatcherBase
	FilterMatcherBase (std::string name=DEFAULT_FILTERMATCHERBASE_NAME)
	FilterMatcherBase (const FilterMatcherBase &rhs)
virtual	~FilterMatcherBase ()
virtual boost::shared_ptr< FilterMatcherBase >	Clone () const

Detailed Description

Definition at line 128 of file FilterMatchers.h.

Constructor & Destructor Documentation

Or() [1/4]

RDKit::FilterMatchOps::Or::Or ( )

inline

Definition at line 134 of file FilterMatchers.h.

References RDKit::FilterMatcherBase::FilterMatcherBase().

Referenced by copy(), and Or().

Or() [2/4]

RDKit::FilterMatchOps::Or::Or ( const FilterMatcherBase & arg1, const FilterMatcherBase & arg2 )

inline

Constructs or Ander true if arg1 or arg2 are true

Definition at line 138 of file FilterMatchers.h.

References copy(), and RDKit::FilterMatcherBase::FilterMatcherBase().

Or() [3/4]

RDKit::FilterMatchOps::Or::Or ( boost::shared_ptr< FilterMatcherBase > arg1, boost::shared_ptr< FilterMatcherBase > arg2 )

inline

Definition at line 141 of file FilterMatchers.h.

References RDKit::FilterMatcherBase::FilterMatcherBase().

Or() [4/4]

RDKit::FilterMatchOps::Or::Or ( const Or & rhs )

inline

Definition at line 145 of file FilterMatchers.h.

References RDKit::FilterMatcherBase::FilterMatcherBase(), and Or().

Member Function Documentation

copy()

boost::shared_ptr< FilterMatcherBase > RDKit::FilterMatchOps::Or::copy ( ) const

inlineoverridevirtual

copy copies the current FilterMatcherBase into one that can be passed around safely.

Implements RDKit::FilterMatcherBase.

Definition at line 172 of file FilterMatchers.h.

References Or().

Referenced by Or().

getMatches()

bool RDKit::FilterMatchOps::Or::getMatches ( const ROMol & mol, std::vector< FilterMatch > & matchVect ) const

inlineoverridevirtual

getMatches

Match the filter against a molecule

Parameters

mol	readonly const molecule being searched
matches	output vector of atom index matches found in the molecule

Implements RDKit::FilterMatcherBase.

Definition at line 161 of file FilterMatchers.h.

References isValid(), and PRECONDITION.

getName()

std::string RDKit::FilterMatchOps::Or::getName ( ) const

inlineoverridevirtual

Reimplemented from RDKit::FilterMatcherBase.

Definition at line 147 of file FilterMatchers.h.

References RDKit::FilterMatcherBase::getName().

hasMatch()

bool RDKit::FilterMatchOps::Or::hasMatch ( const ROMol & mol ) const

inlineoverridevirtual

hasMatches

Does the given molecule contain this filter pattern

Parameters

mol	readonly const molecule being searched

Implements RDKit::FilterMatcherBase.

Definition at line 156 of file FilterMatchers.h.

References isValid(), and PRECONDITION.

isValid()

bool RDKit::FilterMatchOps::Or::isValid ( ) const

inlineoverridevirtual

Implements RDKit::FilterMatcherBase.

Definition at line 152 of file FilterMatchers.h.

Referenced by getMatches(), and hasMatch().

---

The documentation for this class was generated from the following file:

• FilterMatchers.h
