RDKit::MorganFingerprint::MorganAtomInvGenerator Class Reference

Default atom invariants generator for Morgan fingerprint, generates ECFP-type invariants. More...

#include <MorganGenerator.h>

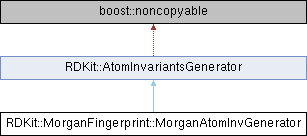

Inheritance diagram for RDKit::MorganFingerprint::MorganAtomInvGenerator:

Public Member Functions
	MorganAtomInvGenerator (const bool includeRingMembership=true)
	Construct a new MorganAtomInvGenerator object.
std::vector< std::uint32_t > *	getAtomInvariants (const ROMol &mol) const override
	get atom invariants from a molecule
std::string	infoString () const override
	method that returns information about this /c AtomInvariantsGenerator and its arguments
void	toJSON (boost::property_tree::ptree &pt) const override
void	fromJSON (const boost::property_tree::ptree &) override
MorganAtomInvGenerator *	clone () const override
Public Member Functions inherited from RDKit::AtomInvariantsGenerator
virtual	~AtomInvariantsGenerator ()

Detailed Description

Default atom invariants generator for Morgan fingerprint, generates ECFP-type invariants.

Definition at line 27 of file MorganGenerator.h.

Constructor & Destructor Documentation

MorganAtomInvGenerator()

RDKit::MorganFingerprint::MorganAtomInvGenerator::MorganAtomInvGenerator

(

const bool

includeRingMembership = true

)

Construct a new MorganAtomInvGenerator object.

Parameters

includeRingMembership

: if set, whether or not the atom is in a ring will be used in the invariant list.

Referenced by clone().

Member Function Documentation

clone()

MorganAtomInvGenerator * RDKit::MorganFingerprint::MorganAtomInvGenerator::clone ( ) const

overridevirtual

Implements RDKit::AtomInvariantsGenerator.

References MorganAtomInvGenerator().

fromJSON()

void RDKit::MorganFingerprint::MorganAtomInvGenerator::fromJSON ( const boost::property_tree::ptree & )

overridevirtual

Reimplemented from RDKit::AtomInvariantsGenerator.

getAtomInvariants()

std::vector< std::uint32_t > * RDKit::MorganFingerprint::MorganAtomInvGenerator::getAtomInvariants ( const ROMol & mol ) const

overridevirtual

get atom invariants from a molecule

Parameters

mol	molecule to generate the atom invariants for

Returns

std::vector<std::uint32_t> atom invariants generated for the given molecule

Implements RDKit::AtomInvariantsGenerator.

infoString()

std::string RDKit::MorganFingerprint::MorganAtomInvGenerator::infoString ( ) const

overridevirtual

method that returns information about this /c AtomInvariantsGenerator and its arguments

Returns

std::string information string

Implements RDKit::AtomInvariantsGenerator.

toJSON()

void RDKit::MorganFingerprint::MorganAtomInvGenerator::toJSON ( boost::property_tree::ptree & pt ) const

overridevirtual

Reimplemented from RDKit::AtomInvariantsGenerator.

---

The documentation for this class was generated from the following file:

• MorganGenerator.h
