Queries::EqualityQuery< MatchFuncArgType, DataFuncArgType, needsConversion > Class Template Reference

a Query implementing ==: arguments must match a particular value (within an optional tolerance) More...

#include <EqualityQuery.h>

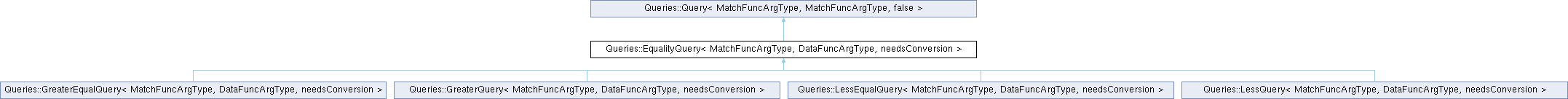

Inheritance diagram for Queries::EqualityQuery< MatchFuncArgType, DataFuncArgType, needsConversion >:

Public Member Functions
	EqualityQuery ()
	EqualityQuery (MatchFuncArgType v)
	constructs with our target value
	EqualityQuery (MatchFuncArgType v, MatchFuncArgType t)
	constructs with our target value and a tolerance
void	setVal (MatchFuncArgType what)
	sets our target value
const MatchFuncArgType	getVal () const
	returns our target value
void	setTol (MatchFuncArgType what)
	sets our tolerance
const MatchFuncArgType	getTol () const
	returns out tolerance
bool	Match (const DataFuncArgType what) const override
Query< MatchFuncArgType, DataFuncArgType, needsConversion > *	copy () const override
	returns a copy of this Query
std::string	getFullDescription () const override
	returns a fuller text description
Public Member Functions inherited from Queries::Query< MatchFuncArgType, MatchFuncArgType, false >
	Query ()
virtual	~Query ()
void	setNegation (bool what)
	sets whether or not we are negated
bool	getNegation () const
	returns whether or not we are negated
void	setDescription (const std::string &descr)
	sets our text description
void	setDescription (const char *descr)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
const std::string &	getDescription () const
	returns our text description
void	setTypeLabel (const std::string &typ)
	sets our type label
void	setTypeLabel (const char *typ)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
const std::string &	getTypeLabel () const
	returns our text label.
void	setMatchFunc (bool(*what)(MatchFuncArgType))
	sets our match function
void	setDataFunc (MatchFuncArgType(*what)(MatchFuncArgType))
	sets our data function
void	addChild (CHILD_TYPE child)
	adds a child to our list of children
CHILD_VECT_CI	beginChildren () const
	returns an iterator for the beginning of our child vector
CHILD_VECT_CI	endChildren () const
	returns an iterator for the end of our child vector
virtual bool	Match (const MatchFuncArgType arg) const
	returns whether or not we match the argument

Additional Inherited Members
Public Types inherited from Queries::Query< MatchFuncArgType, MatchFuncArgType, false >
using	CHILD_TYPE
using	CHILD_VECT
using	CHILD_VECT_I
using	CHILD_VECT_CI
using	MATCH_FUNC_ARG_TYPE
using	DATA_FUNC_ARG_TYPE
Public Attributes inherited from Queries::Query< MatchFuncArgType, MatchFuncArgType, false >
bool(*)(MatchFuncArgType)	getMatchFunc () const
	returns our match function:
MatchFuncArgType(*)(MatchFuncArgType)	getDataFunc () const
	returns our data function:
MatchFuncArgType(*	d_dataFunc )(MatchFuncArgType)
MatchFuncArgType(*	d_dataFuncSameType )(MatchFuncArgType)
Protected Member Functions inherited from Queries::Query< MatchFuncArgType, MatchFuncArgType, false >
MatchFuncArgType	TypeConvert (MatchFuncArgType what, Int2Type< false >) const
	calls our dataFunc (if it's set) on what and returns the result, otherwise returns what
MatchFuncArgType	TypeConvert (MatchFuncArgType what, Int2Type< true >) const
Protected Attributes inherited from Queries::Query< MatchFuncArgType, MatchFuncArgType, false >
MatchFuncArgType	d_val
MatchFuncArgType	d_tol
std::string	d_description
std::string	d_queryType
CHILD_VECT	d_children
bool	df_negate
bool(*	d_matchFunc )(MatchFuncArgType)
union {
MatchFuncArgType(*   d_dataFunc )(DataFuncArgType)
MatchFuncArgType(*   d_dataFuncSameType )(MatchFuncArgType)
};

Detailed Description

template<typename MatchFuncArgType, typename DataFuncArgType = MatchFuncArgType, bool needsConversion = false>
class Queries::EqualityQuery< MatchFuncArgType, DataFuncArgType, needsConversion >

a Query implementing ==: arguments must match a particular value (within an optional tolerance)

Definition at line 23 of file EqualityQuery.h.

Constructor & Destructor Documentation

EqualityQuery() [1/3]

template<typename MatchFuncArgType, typename DataFuncArgType = MatchFuncArgType, bool needsConversion = false>

Queries::EqualityQuery< MatchFuncArgType, DataFuncArgType, needsConversion >::EqualityQuery ( )

inline

Definition at line 26 of file EqualityQuery.h.

EqualityQuery() [2/3]

template<typename MatchFuncArgType, typename DataFuncArgType = MatchFuncArgType, bool needsConversion = false>

Queries::EqualityQuery< MatchFuncArgType, DataFuncArgType, needsConversion >::EqualityQuery ( MatchFuncArgType v )

inlineexplicit

constructs with our target value

Definition at line 29 of file EqualityQuery.h.

EqualityQuery() [3/3]

template<typename MatchFuncArgType, typename DataFuncArgType = MatchFuncArgType, bool needsConversion = false>

Queries::EqualityQuery< MatchFuncArgType, DataFuncArgType, needsConversion >::EqualityQuery ( MatchFuncArgType v, MatchFuncArgType t )

inline

constructs with our target value and a tolerance

Definition at line 35 of file EqualityQuery.h.

Member Function Documentation

copy()

template<typename MatchFuncArgType, typename DataFuncArgType = MatchFuncArgType, bool needsConversion = false>

Query< MatchFuncArgType, DataFuncArgType, needsConversion > * Queries::EqualityQuery< MatchFuncArgType, DataFuncArgType, needsConversion >::copy ( ) const

inlineoverridevirtual

returns a copy of this Query

Notes:

• the caller is responsible for deleteing the result

Reimplemented from Queries::Query< MatchFuncArgType, MatchFuncArgType, false >.

Reimplemented in Queries::GreaterEqualQuery< MatchFuncArgType, DataFuncArgType, needsConversion >, Queries::GreaterEqualQuery< double, const ROMol &, true >, Queries::GreaterEqualQuery< double, const ROMol &, true >, Queries::GreaterEqualQuery< int, Atom const *, true >, Queries::GreaterEqualQuery< int, Atom const *, true >, Queries::GreaterEqualQuery< int, Bond const *, true >, Queries::GreaterEqualQuery< int, Bond const *, true >, Queries::GreaterQuery< MatchFuncArgType, DataFuncArgType, needsConversion >, Queries::GreaterQuery< double, const ROMol &, true >, Queries::GreaterQuery< double, const ROMol &, true >, Queries::GreaterQuery< int, Atom const *, true >, Queries::GreaterQuery< int, Atom const *, true >, Queries::GreaterQuery< int, Bond const *, true >, Queries::GreaterQuery< int, Bond const *, true >, Queries::LessEqualQuery< MatchFuncArgType, DataFuncArgType, needsConversion >, Queries::LessEqualQuery< double, const ROMol &, true >, Queries::LessEqualQuery< double, const ROMol &, true >, Queries::LessEqualQuery< int, Atom const *, true >, Queries::LessEqualQuery< int, Atom const *, true >, Queries::LessEqualQuery< int, Bond const *, true >, Queries::LessEqualQuery< int, Bond const *, true >, Queries::LessQuery< MatchFuncArgType, DataFuncArgType, needsConversion >, Queries::LessQuery< double, const ROMol &, true >, Queries::LessQuery< double, const ROMol &, true >, Queries::LessQuery< int, Atom const *, true >, Queries::LessQuery< int, Atom const *, true >, Queries::LessQuery< int, Bond const *, true >, Queries::LessQuery< int, Bond const *, true >, RDKit::HasPropQuery< TargetPtr >, RDKit::HasPropWithValueQuery< TargetPtr, T >, RDKit::HasPropWithValueQuery< TargetPtr, ExplicitBitVect >, RDKit::HasPropWithValueQuery< TargetPtr, ExplicitBitVect >, RDKit::HasPropWithValueQuery< TargetPtr, std::string >, and RDKit::HasPropWithValueQuery< TargetPtr, std::string >.

Definition at line 61 of file EqualityQuery.h.

getFullDescription()

template<typename MatchFuncArgType, typename DataFuncArgType = MatchFuncArgType, bool needsConversion = false>

std::string Queries::EqualityQuery< MatchFuncArgType, DataFuncArgType, needsConversion >::getFullDescription ( ) const

inlineoverridevirtual

returns a fuller text description

Reimplemented from Queries::Query< MatchFuncArgType, MatchFuncArgType, false >.

Reimplemented in Queries::GreaterEqualQuery< MatchFuncArgType, DataFuncArgType, needsConversion >, Queries::GreaterEqualQuery< double, const ROMol &, true >, Queries::GreaterEqualQuery< double, const ROMol &, true >, Queries::GreaterEqualQuery< int, Atom const *, true >, Queries::GreaterEqualQuery< int, Atom const *, true >, Queries::GreaterEqualQuery< int, Bond const *, true >, Queries::GreaterEqualQuery< int, Bond const *, true >, Queries::GreaterQuery< MatchFuncArgType, DataFuncArgType, needsConversion >, Queries::GreaterQuery< double, const ROMol &, true >, Queries::GreaterQuery< double, const ROMol &, true >, Queries::GreaterQuery< int, Atom const *, true >, Queries::GreaterQuery< int, Atom const *, true >, Queries::GreaterQuery< int, Bond const *, true >, Queries::GreaterQuery< int, Bond const *, true >, Queries::LessEqualQuery< MatchFuncArgType, DataFuncArgType, needsConversion >, Queries::LessEqualQuery< double, const ROMol &, true >, Queries::LessEqualQuery< double, const ROMol &, true >, Queries::LessEqualQuery< int, Atom const *, true >, Queries::LessEqualQuery< int, Atom const *, true >, Queries::LessEqualQuery< int, Bond const *, true >, Queries::LessEqualQuery< int, Bond const *, true >, Queries::LessQuery< MatchFuncArgType, DataFuncArgType, needsConversion >, Queries::LessQuery< double, const ROMol &, true >, Queries::LessQuery< double, const ROMol &, true >, Queries::LessQuery< int, Atom const *, true >, Queries::LessQuery< int, Atom const *, true >, Queries::LessQuery< int, Bond const *, true >, and Queries::LessQuery< int, Bond const *, true >.

Definition at line 74 of file EqualityQuery.h.

getTol()

template<typename MatchFuncArgType, typename DataFuncArgType = MatchFuncArgType, bool needsConversion = false>

const MatchFuncArgType Queries::EqualityQuery< MatchFuncArgType, DataFuncArgType, needsConversion >::getTol ( ) const

inline

returns out tolerance

Definition at line 49 of file EqualityQuery.h.

getVal()

template<typename MatchFuncArgType, typename DataFuncArgType = MatchFuncArgType, bool needsConversion = false>

const MatchFuncArgType Queries::EqualityQuery< MatchFuncArgType, DataFuncArgType, needsConversion >::getVal ( ) const

inline

returns our target value

Definition at line 44 of file EqualityQuery.h.

Match()

template<typename MatchFuncArgType, typename DataFuncArgType = MatchFuncArgType, bool needsConversion = false>

bool Queries::EqualityQuery< MatchFuncArgType, DataFuncArgType, needsConversion >::Match ( const DataFuncArgType what ) const

inlineoverride

Reimplemented in RDKit::HasPropQuery< TargetPtr >, RDKit::HasPropWithValueQuery< TargetPtr, T >, RDKit::HasPropWithValueQuery< TargetPtr, ExplicitBitVect >, RDKit::HasPropWithValueQuery< TargetPtr, ExplicitBitVect >, RDKit::HasPropWithValueQuery< TargetPtr, std::string >, and RDKit::HasPropWithValueQuery< TargetPtr, std::string >.

Definition at line 51 of file EqualityQuery.h.

setTol()

template<typename MatchFuncArgType, typename DataFuncArgType = MatchFuncArgType, bool needsConversion = false>

void Queries::EqualityQuery< MatchFuncArgType, DataFuncArgType, needsConversion >::setTol ( MatchFuncArgType what )

inline

sets our tolerance

Definition at line 47 of file EqualityQuery.h.

Referenced by Queries::EqualityQuery< double, const ROMol &, true >::copy(), Queries::GreaterEqualQuery< double, const ROMol &, true >::copy(), Queries::GreaterQuery< double, const ROMol &, true >::copy(), Queries::LessEqualQuery< double, const ROMol &, true >::copy(), Queries::LessQuery< double, const ROMol &, true >::copy(), and RDKit::AtomRingQuery::copy().

setVal()

template<typename MatchFuncArgType, typename DataFuncArgType = MatchFuncArgType, bool needsConversion = false>

void Queries::EqualityQuery< MatchFuncArgType, DataFuncArgType, needsConversion >::setVal ( MatchFuncArgType what )

inline

sets our target value

Definition at line 42 of file EqualityQuery.h.

Referenced by Queries::EqualityQuery< double, const ROMol &, true >::copy(), Queries::GreaterEqualQuery< double, const ROMol &, true >::copy(), Queries::GreaterQuery< double, const ROMol &, true >::copy(), Queries::LessEqualQuery< double, const ROMol &, true >::copy(), and Queries::LessQuery< double, const ROMol &, true >::copy().

---

The documentation for this class was generated from the following file:

• EqualityQuery.h
