Queries::LessQuery< MatchFuncArgType, DataFuncArgType, needsConversion > Class Template Reference

a Query implementing < using a particular value (and an optional tolerance) More...

#include <LessQuery.h>

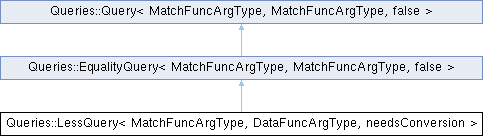

Inheritance diagram for Queries::LessQuery< MatchFuncArgType, DataFuncArgType, needsConversion >:

Public Member Functions
	LessQuery ()
	LessQuery (DataFuncArgType v)
	constructs with our target value
	LessQuery (DataFuncArgType v, DataFuncArgType t)
	constructs with our target value and a tolerance
bool	Match (const DataFuncArgType what) const override
Query< MatchFuncArgType, DataFuncArgType, needsConversion > *	copy () const override
	returns a copy of this Query
std::string	getFullDescription () const override
	returns a fuller text description
Public Member Functions inherited from Queries::EqualityQuery< MatchFuncArgType, MatchFuncArgType, false >
	EqualityQuery ()
	EqualityQuery (MatchFuncArgType v)
	constructs with our target value
	EqualityQuery (MatchFuncArgType v, MatchFuncArgType t)
	constructs with our target value and a tolerance
void	setVal (MatchFuncArgType what)
	sets our target value
const MatchFuncArgType	getVal () const
	returns our target value
void	setTol (MatchFuncArgType what)
	sets our tolerance
const MatchFuncArgType	getTol () const
	returns out tolerance
bool	Match (const MatchFuncArgType what) const override
Public Member Functions inherited from Queries::Query< MatchFuncArgType, MatchFuncArgType, needsConversion >
	Query ()
virtual	~Query ()
void	setNegation (bool what)
	sets whether or not we are negated
bool	getNegation () const
	returns whether or not we are negated
void	setDescription (const std::string &descr)
	sets our text description
void	setDescription (const char *descr)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
const std::string &	getDescription () const
	returns our text description
void	setTypeLabel (const std::string &typ)
	sets our type label
void	setTypeLabel (const char *typ)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
const std::string &	getTypeLabel () const
	returns our text label.
void	setMatchFunc (bool(*what)(MatchFuncArgType))
	sets our match function
void	setDataFunc (MatchFuncArgType(*what)(MatchFuncArgType))
	sets our data function
void	addChild (CHILD_TYPE child)
	adds a child to our list of children
CHILD_VECT_CI	beginChildren () const
	returns an iterator for the beginning of our child vector
CHILD_VECT_CI	endChildren () const
	returns an iterator for the end of our child vector

Additional Inherited Members
Public Types inherited from Queries::Query< MatchFuncArgType, MatchFuncArgType, needsConversion >
using	CHILD_TYPE
using	CHILD_VECT
using	CHILD_VECT_I
using	CHILD_VECT_CI
using	MATCH_FUNC_ARG_TYPE
using	DATA_FUNC_ARG_TYPE
Public Attributes inherited from Queries::Query< MatchFuncArgType, MatchFuncArgType, needsConversion >
bool(*)(MatchFuncArgType)	getMatchFunc () const
	returns our match function:
MatchFuncArgType(*)(MatchFuncArgType)	getDataFunc () const
	returns our data function:
MatchFuncArgType(*	d_dataFunc )(MatchFuncArgType)
MatchFuncArgType(*	d_dataFuncSameType )(MatchFuncArgType)
Protected Member Functions inherited from Queries::Query< MatchFuncArgType, MatchFuncArgType, needsConversion >
MatchFuncArgType	TypeConvert (MatchFuncArgType what, Int2Type< false >) const
	calls our dataFunc (if it's set) on what and returns the result, otherwise returns what
MatchFuncArgType	TypeConvert (MatchFuncArgType what, Int2Type< true >) const
Protected Attributes inherited from Queries::Query< MatchFuncArgType, MatchFuncArgType, needsConversion >
MatchFuncArgType	d_val
MatchFuncArgType	d_tol
std::string	d_description
std::string	d_queryType
CHILD_VECT	d_children
bool	df_negate
bool(*	d_matchFunc )(MatchFuncArgType)
union {
MatchFuncArgType(*   d_dataFunc )(DataFuncArgType)
MatchFuncArgType(*   d_dataFuncSameType )(MatchFuncArgType)
};

Detailed Description

template<class MatchFuncArgType, class DataFuncArgType = MatchFuncArgType, bool needsConversion = false>
class Queries::LessQuery< MatchFuncArgType, DataFuncArgType, needsConversion >

a Query implementing < using a particular value (and an optional tolerance)

Definition at line 21 of file LessQuery.h.

Constructor & Destructor Documentation

LessQuery() [1/3]

template<class MatchFuncArgType, class DataFuncArgType = MatchFuncArgType, bool needsConversion = false>

Queries::LessQuery< MatchFuncArgType, DataFuncArgType, needsConversion >::LessQuery ( )

inline

Definition at line 24 of file LessQuery.h.

LessQuery() [2/3]

template<class MatchFuncArgType, class DataFuncArgType = MatchFuncArgType, bool needsConversion = false>

Queries::LessQuery< MatchFuncArgType, DataFuncArgType, needsConversion >::LessQuery ( DataFuncArgType v )

inlineexplicit

constructs with our target value

Definition at line 26 of file LessQuery.h.

LessQuery() [3/3]

template<class MatchFuncArgType, class DataFuncArgType = MatchFuncArgType, bool needsConversion = false>

Queries::LessQuery< MatchFuncArgType, DataFuncArgType, needsConversion >::LessQuery ( DataFuncArgType v, DataFuncArgType t )

inline

constructs with our target value and a tolerance

Definition at line 32 of file LessQuery.h.

Member Function Documentation

copy()

template<class MatchFuncArgType, class DataFuncArgType = MatchFuncArgType, bool needsConversion = false>

Query< MatchFuncArgType, DataFuncArgType, needsConversion > * Queries::LessQuery< MatchFuncArgType, DataFuncArgType, needsConversion >::copy ( ) const

inlineoverridevirtual

returns a copy of this Query

Notes:

• the caller is responsible for deleteing the result

Reimplemented from Queries::EqualityQuery< MatchFuncArgType, MatchFuncArgType, false >.

Definition at line 48 of file LessQuery.h.

getFullDescription()

template<class MatchFuncArgType, class DataFuncArgType = MatchFuncArgType, bool needsConversion = false>

std::string Queries::LessQuery< MatchFuncArgType, DataFuncArgType, needsConversion >::getFullDescription ( ) const

inlineoverridevirtual

returns a fuller text description

Reimplemented from Queries::EqualityQuery< MatchFuncArgType, MatchFuncArgType, false >.

Definition at line 61 of file LessQuery.h.

Match()

template<class MatchFuncArgType, class DataFuncArgType = MatchFuncArgType, bool needsConversion = false>

bool Queries::LessQuery< MatchFuncArgType, DataFuncArgType, needsConversion >::Match ( const DataFuncArgType what ) const

inlineoverride

Definition at line 38 of file LessQuery.h.

---

The documentation for this class was generated from the following file:

• LessQuery.h
